Water Distribution System
The system of distributing water efficiently to the consumers is known as water distribution system.
 |
| city water distribution system |
The types of water distribution system are as follows :
1. Dead end distribution system.

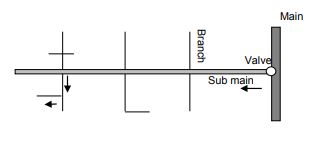

the dead end system is also called as tree system. There is only one main supply pipe. Many sub-main pipes are taken out of it. Each sub-main is divided into several branch pipes called laterals. From lateral, the service connections are given to the consumers.
 |
| Dead end distribution system |
2. Grid iron distribution system.
Grid iron system is an improvement over the dead end system. In this system, the mains, sub-mains and branches are interconnected with each other.
 |
| grid iron distribution system |
3. Ring system water distribution.
ring design system is adopted in well-planned cities only. In this system, each city is divided into square or circular blocks. The water mains are laid around all the four sides of the square or round the circle and the branches, sub-mains etc. are laid along the inner roads.
 |
| Square type ring system water distribution |
 |
| circular type ring system water distribution |
4. Radial distribution system.
radial distribution system of water is just opposite to the ring system and water flows towards outer periphery from one point.
